MCase Installation Guide

How to assemble your MCase step by step

MCase adopts a modular structure. Please follow the steps below for proper installation to ensure a snug fit and the best experience.

Step 1 · Prepare the parts

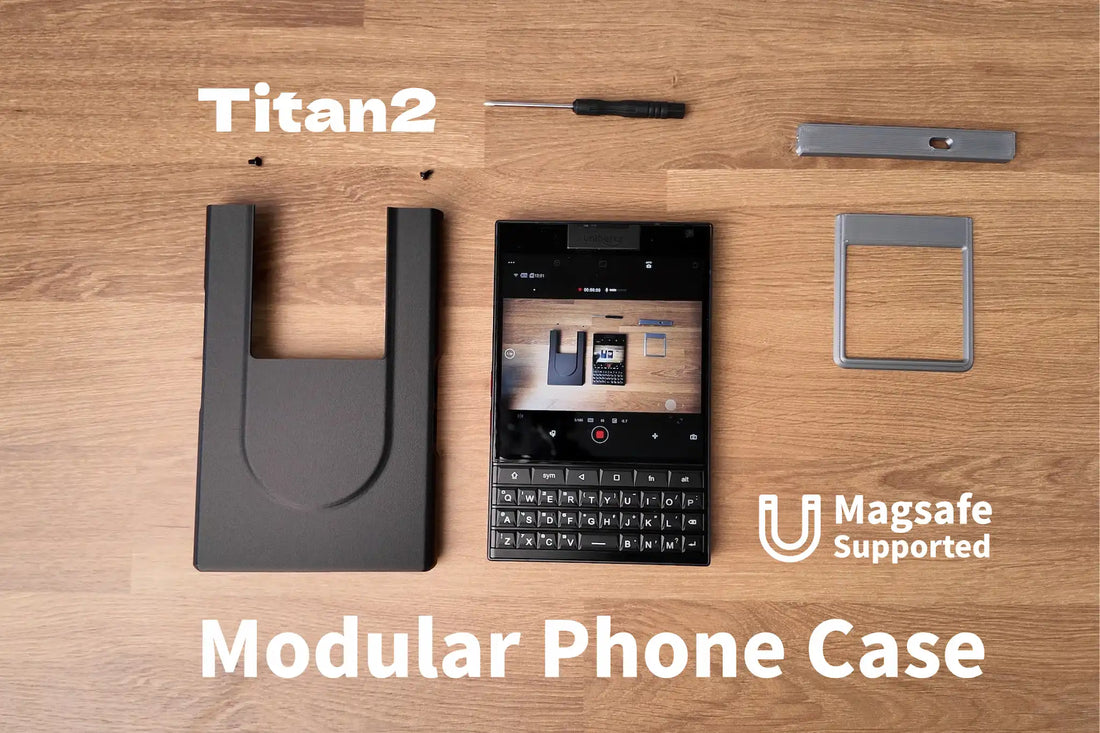

Open the box and take out all components.
Place the screws and top cover (topset) on the included soft cloth.

This helps keep small parts organized during installation and prevents screws from rolling away or getting lost.

Step 2 · Install the camera frame

Align the camera frame with the camera module on the phone as shown.
Start pressing from the bottom-left corner, then gently press along the edges until the frame is fully seated.

Make sure the camera frame fits tightly around the camera module, with no visible gap between the frame and the phone’s back.

Step 3 · Insert the phone into the base case

Hold the phone at a slight angle and slide it into the base case slot as shown.
Once it reaches the bottom, apply gentle pressure so the phone sits flush with the base.

At this point:

  • The bottom of the phone should sit snugly with the base case

  • The top of the camera frame should be level with the top edge of the base case

Step 4 · Place the top cover

Position the top cover (topset) onto the case.
Make sure the opening for the infrared camera module is on the left side, as shown in the image.

Step 5 · Secure with screws

Using the included screws, fasten both the left and right sides of the top cover.
Tighten the screws evenly until secure — no need to over-tighten.

Step 6 · Final check

Inspect the final assembly:

  • The top edge of the case is flat and aligned

  • The top cover sits tightly against the base case

  • All modules feel secure with no looseness or gaps

Your MCase is now properly installed and ready to use ✨
